Stability Test Chamber (Humidity Chamber) Or Environmental Test Chamber, Manufacturer, Exporter, Dealer, Supplier

Stability chamber, Stability test chamber from HMG India are meant for testing stability of a product or its shelf life else packaging. Our equipment is robust and inclusive of modern features through which you can test the effects of certain type of situations on drugs, food, vaccines, medicines, cement, electrical compounds etc. We provide it in various sizes from which you can select a suitable one.

Robust And With Modern Features

In order to make the equipment work, there is intake of air into the chamber, which is then heated up. The uniform distribution of air inside the chamber ensures that it has even impact on items places in the chamber's shelves.

There is a port to remove exhaust air and the typical temperature that can be created inside the chamber ranges between 30 to +70°C, while humidity is between 50-80% RH.Through HMG India's Stability Chamber, you can seamlessly conduct accelerated aging tests, shelf life test, stability tests, expiry date tests, package testing, etc. Some of the many industries that can opt for its to test include medical, pharmaceutical, personal are, consumer products etc.

The design of our model is such that it is easy to setup and once it has been put into operations you will find it to offer worry free operation and stable running time and again. The exterior has a double-walled structure that also comes with desired level of insulation to prevent heat loss.

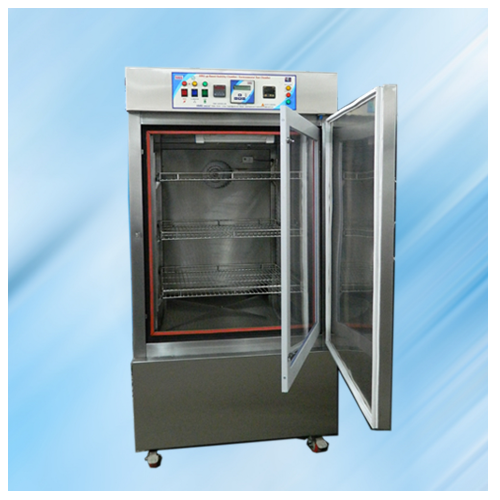

It is a rugged equipment one that has been created out of immense R & D and is built to conform to international standards, It can be used in simple as well as complex environment and will show expected performance time and again. Inside body is made room stainless steel which ensure durability and strength. Interior illumination is available and through an observation glass door, it is easy to monitor what is happening inside the chamber. Interior racks and trays are made room stainless steel to ensure durability and strength.

It comes with a variety of safety features such as safety thermostat, low water cut off, safety digital controller, safety HRC fuses, electrical overload cut off relay etc. It also comes with micro-controller based PID controller through which the temperature and humidity levels can be set.Some of its many optional features include standby refrigeration, voltage stabilizer, standby humidity control system, data logger etc. Specify which optional features you want and we will have them incorporated into the device to make it me convenient for your specific usage needs.


Material Construction

Cap Cft/Ltr Dimension (WXDXH) in CM No Of Tray W X D 3.5 cm H Servo Stabilizer & UPS Power Rating
HETC Internal External Size -CM KVA KW
3 / 90 40 X 40 X 57 55 X 88 X 135 2 32 x38 3 1.2
6 /170 50 X 50 X 70 65 X 100 X 148 2 42 x 48 3 1.2
8/200 60 X 60 X 60 65 X 100 X 158 2 52 x 58 3 1.2
10 /285 57 X 57 X 88 72 X 107 X 174 3 49 x 55 4 1.6
12 / 340 60 X 60 X 95 75 X 110 X 181 3 52 x 58 4 1.6
14/400 65 x60 x 100 80 x 110 x 186 3 57 x 58 5 1.8
16 / 450 70 X 70 X 90 85 X 120 X 176 3 62 x 68 5 2.0
21 / 600 80 X 75 X 100 95 X 125 X 186 3 72 x 73 5/7** 2.0
28 / 800 80 X 80 X 125 95 X 130 X 200 3 72 x 78 7/7.5** 3.5
36/1000 90 x 90 x 125 105 X 140 X 200 5 82 x 85 7/7.5** 3.5
54/1500* 135 x 90 x 125 150 x 140 x 200 5 x 2 55 x 85 10 5.0
72/2000* 150 x 100 x 135 165 x 150 x 210 7 x 2 62 x 95 10 5.0
87/2500* 165 x100 x 150 180 x 150 x 200 H 225 with built in. 8 x 2 70 x 95 10 7.0
107/3000* 165 x 100 x 185 180 x 150 x 235 H 235 with built in 10 x 2 70 x 95 10 7.0

Documents

  •  1. Calibration Certificate for Controller and sensor with traceability.
  •  2. DQ, IQ, OQ & PQ protocol provided with the equipment

  • Optional

  •  1. Data Logger: 4 point temp. Data logger with sensors placed at specific points in chamber with printer interface and memory
  •  2. Standby Humidity Control Chamber System
  •  3. Standby Refrigeration system
  •  4. HMI: 5.7" touch screen grey in lieu of 3.7"
  •  5. Servo controlled voltage stabilizer
  •  6. PLC-based system: PLC with HMI 3.7” touch screen grey monitor with 21 CFR Part 11 features (OSLOG) software.
